Description

Features

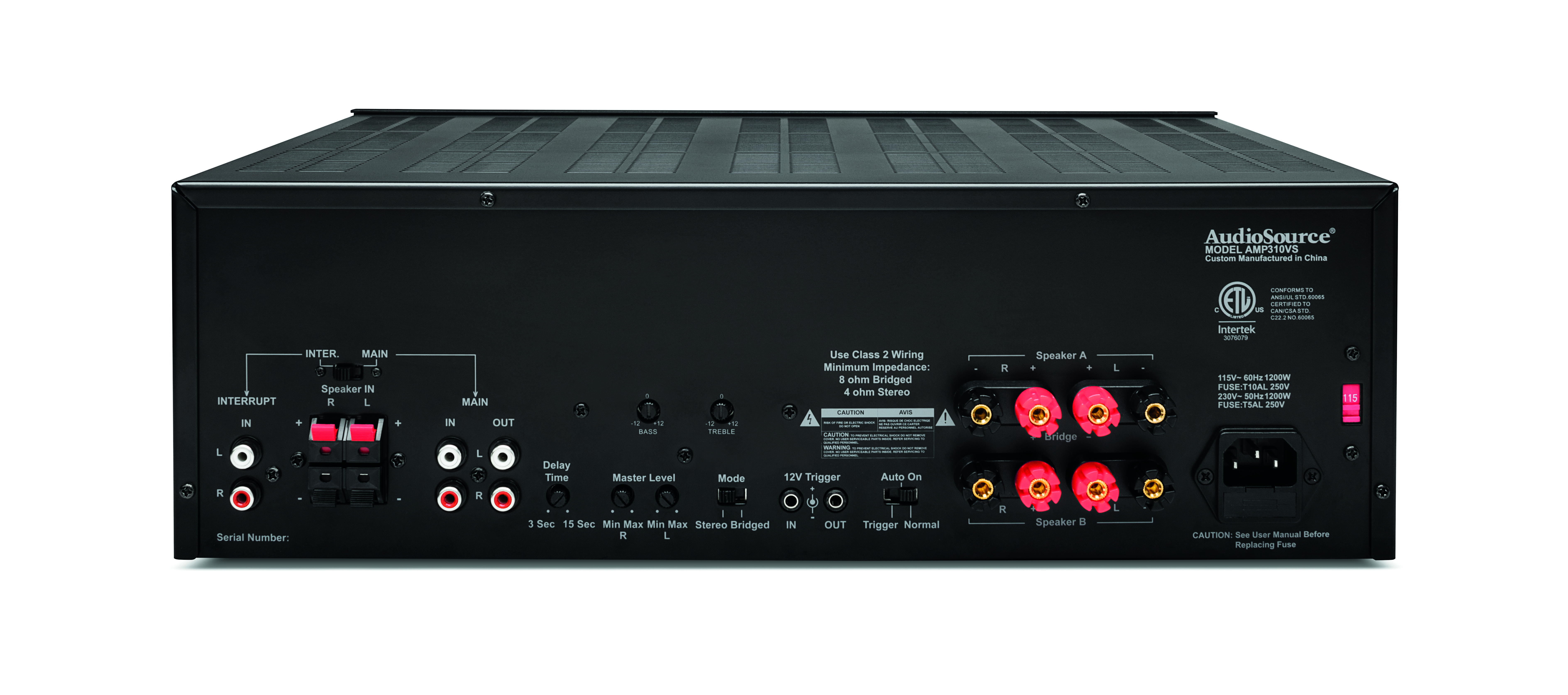

• 5-Way Binding Posts
• A/B Speaker selector
• Auto Signal Sensing Power On
• Dual Auto-Switching Inputs
• Dual-differential error amplifiers

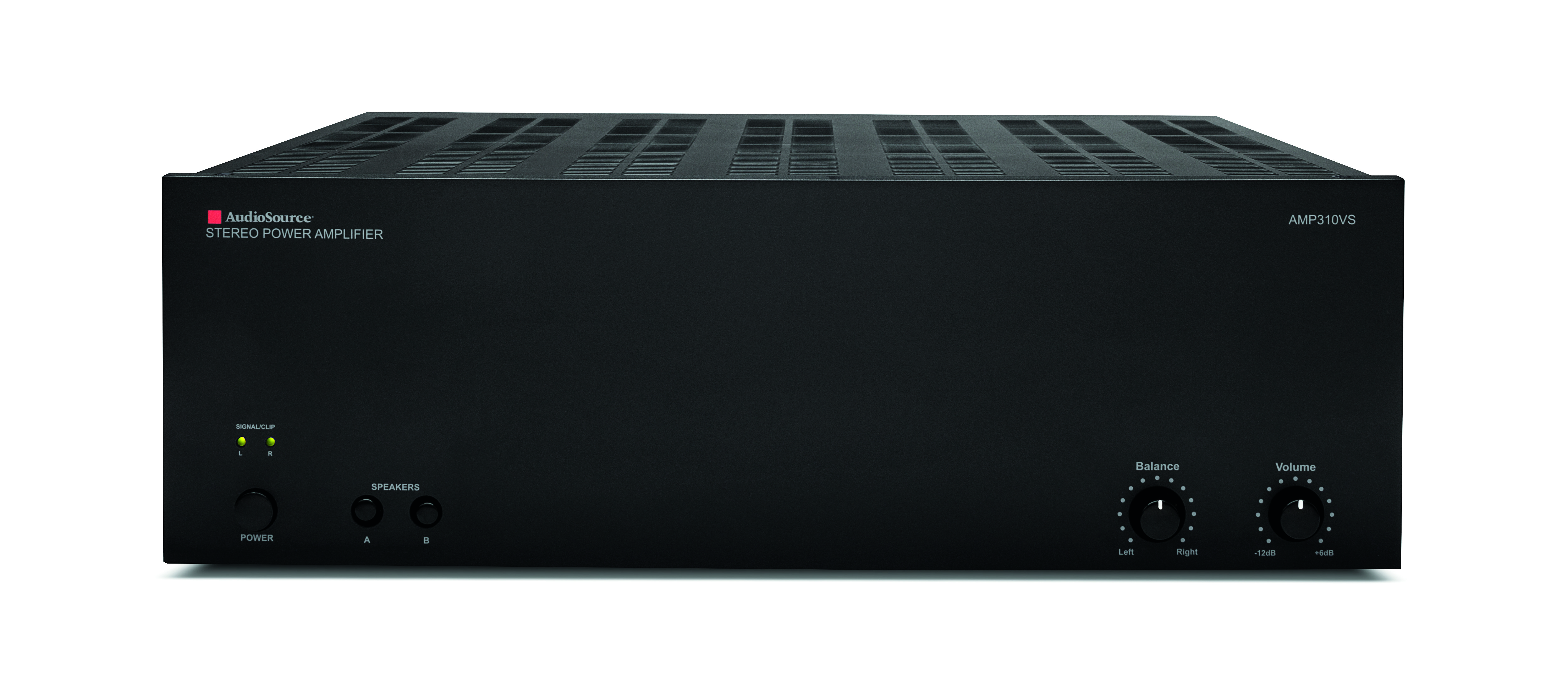

• Front panel balance and volumen controls
• Front panel diagnostic LEDS
• High level inputs
• Line 2 Auxiliary output
• Rear independent left/right master level controls
• Rear mounted treble and bass controls
• Triple-Darlington Power Amplifier Stages
• Rack mountable (Rack ears included)

Specifications

• Input Sensitivity: Variable, .350mV to 2.8V for rated power at 8 ohms
• Frequence response: 10Hz to 50kHz
• Channel Crosstalk: 70 dB
• Less than 0.2% THD into 8 ohms at rated power
• S/N Ratio: 100 dB A-weighted
