Description

Features

• Extensive protection circuitry
• Independent and 2 bus inputs
• Independent channel gain controls
• LED status indicator lights
• Manual, auto, or triggered on/off
• Phoenix-style speaker connectors
• Stable class A/B design

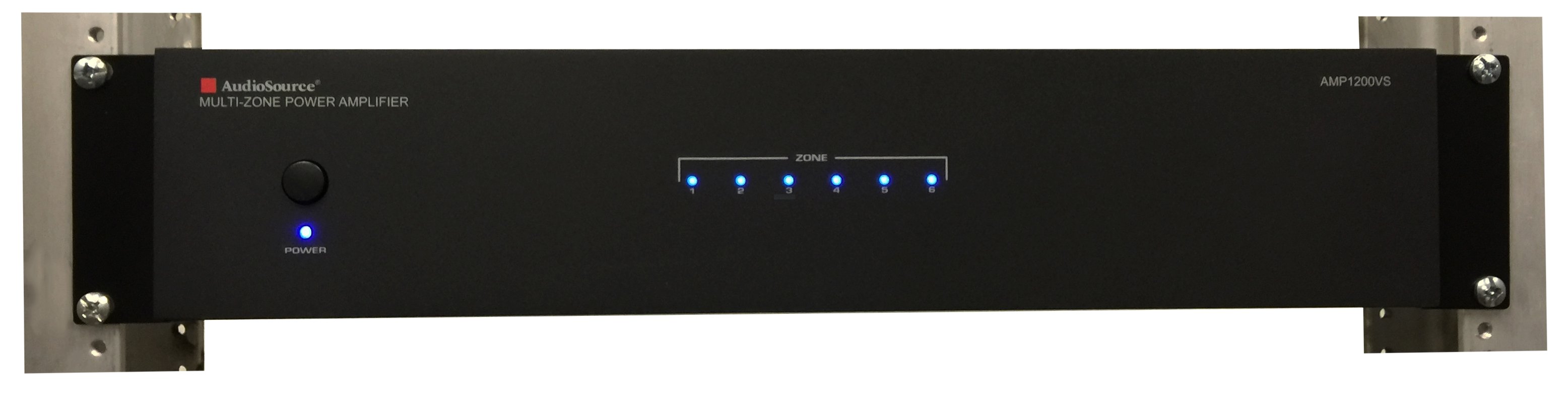

• Rack mountable (Rack ears included)

Specifications

• Input Sensitivity: Variable, .350mV to 2.8V for rated power at 8 ohms
• Frequence response: 10Hz to 50kHz
• Channel Crosstalk: 70 dB
• Less than 0.2% THD into 8 ohms at rated power
• S/N Ratio: 100 dB A-weighted
