AD508 8-Channel Digital Multi-Zone Amplifier
- Powerful Multi-Zone Amplification – Drive 8 channels (4 zones) delivering 65W/channel at 8 ohms, 100W/channel at 4 ohms. Bridged stereo pairs @ 200W/zone for more power in larger rooms or outdoors. Perfect for multi-room/zone systems in both residential and commercial environments.

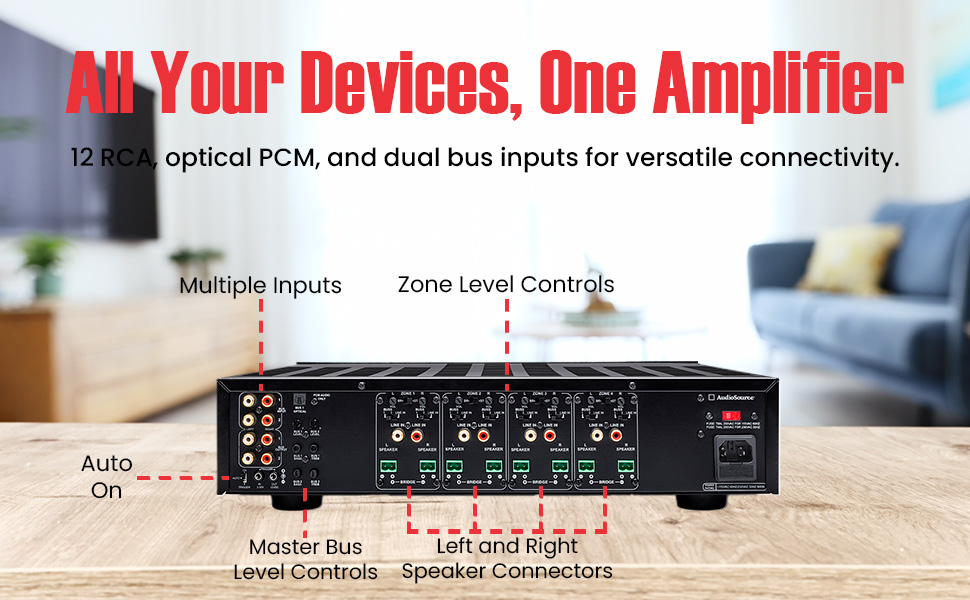

- Flexible Audio Routing – Supports 8 independent inputs, 2 bus inputs and 1 optical PCM input. Input selection and volume are fully adjustable per channel.

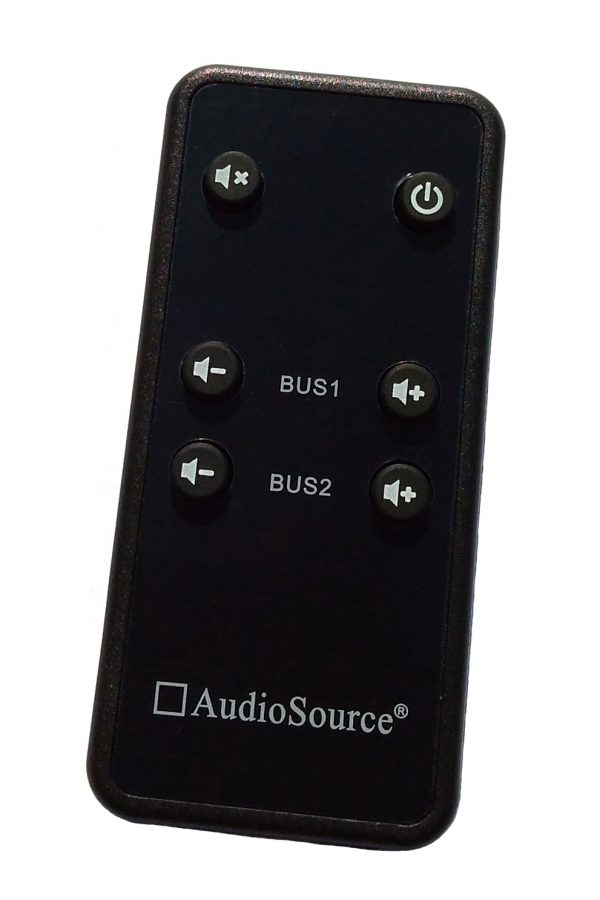

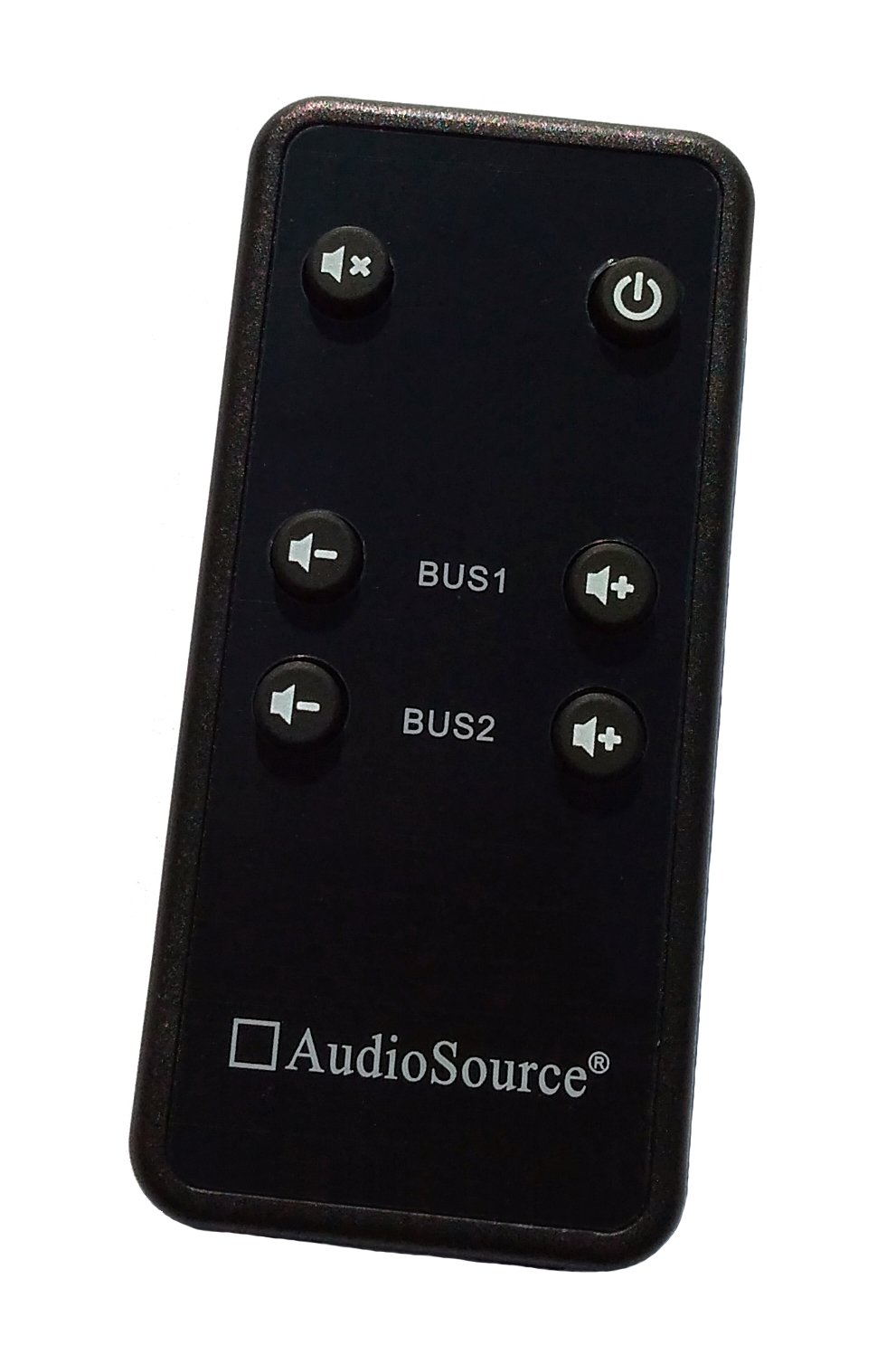

- Smart Control Options – Choose from manual, signal sensing, or 12V trigger power-on modes. Includes a multi-function IR remote for Bus 1 & 2 volume, power and mute.

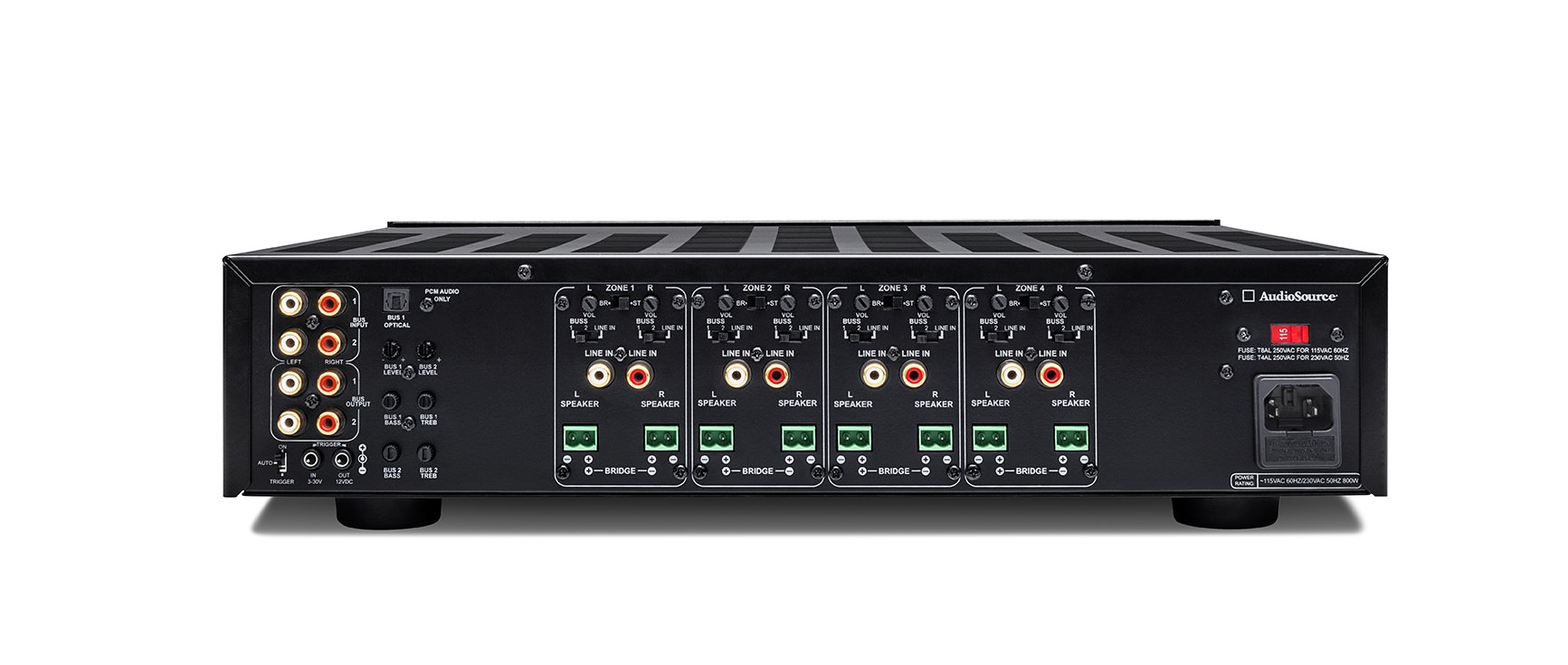

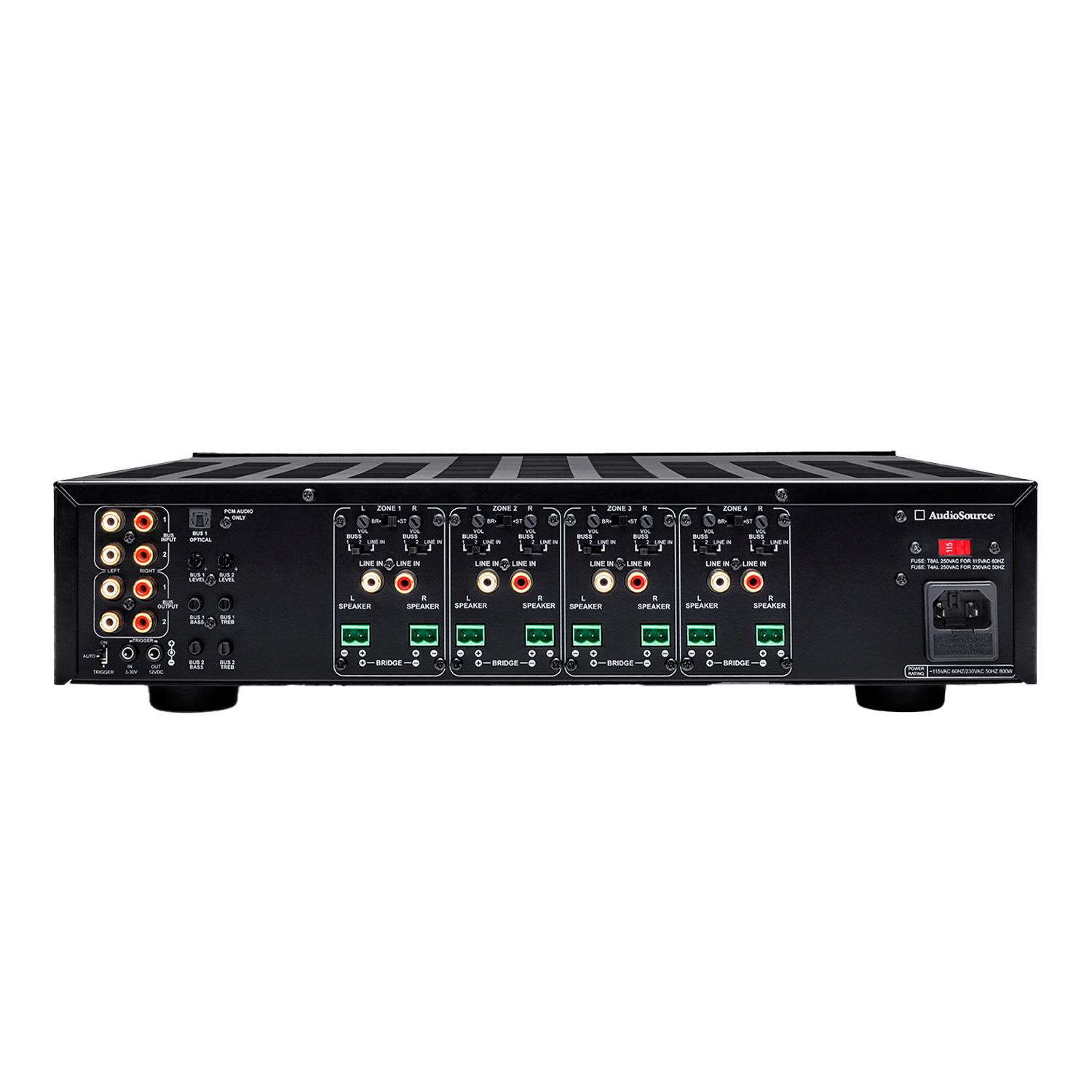

- Complete System Control – Power on via front panel. 3 Power-on modes (normal, signal-sensing, trigger). Rear mounted Bus 1 & 2 master level control. Adjust gain, bass, treble, and input selection per channel. Rear-mounted controls make this amp ideal for clean installs.
- Professional Install Ready – Rack mountable (rack ears included), Phoenix-style speaker connectors. Discrete and installer friendly controls on the back panel.
Click Below to Buy Now:
Product Description
The AudioSource AD508 Digital Multi-Zone Power Amplifier is the ultimate solution for residential and commercial multi-room audio systems. Engineered to power 8 independent channels (4 stereo zones), the AD508 offers rock-solid Class D digital efficiency with 65W per channel at 8 ohms, 100W at 4 ohms, or delivering up to 200W bridged pair into 8 ohms.
Each channel can select between a dedicated Line In, Bus 1, or Bus 2 input. A dedicated Optical input allows you to connect digital sources in PCM stereo format. Two master-level Bus volume controls, plus treble and bass for each Bus, allow installers to optimize performance room-by-room.

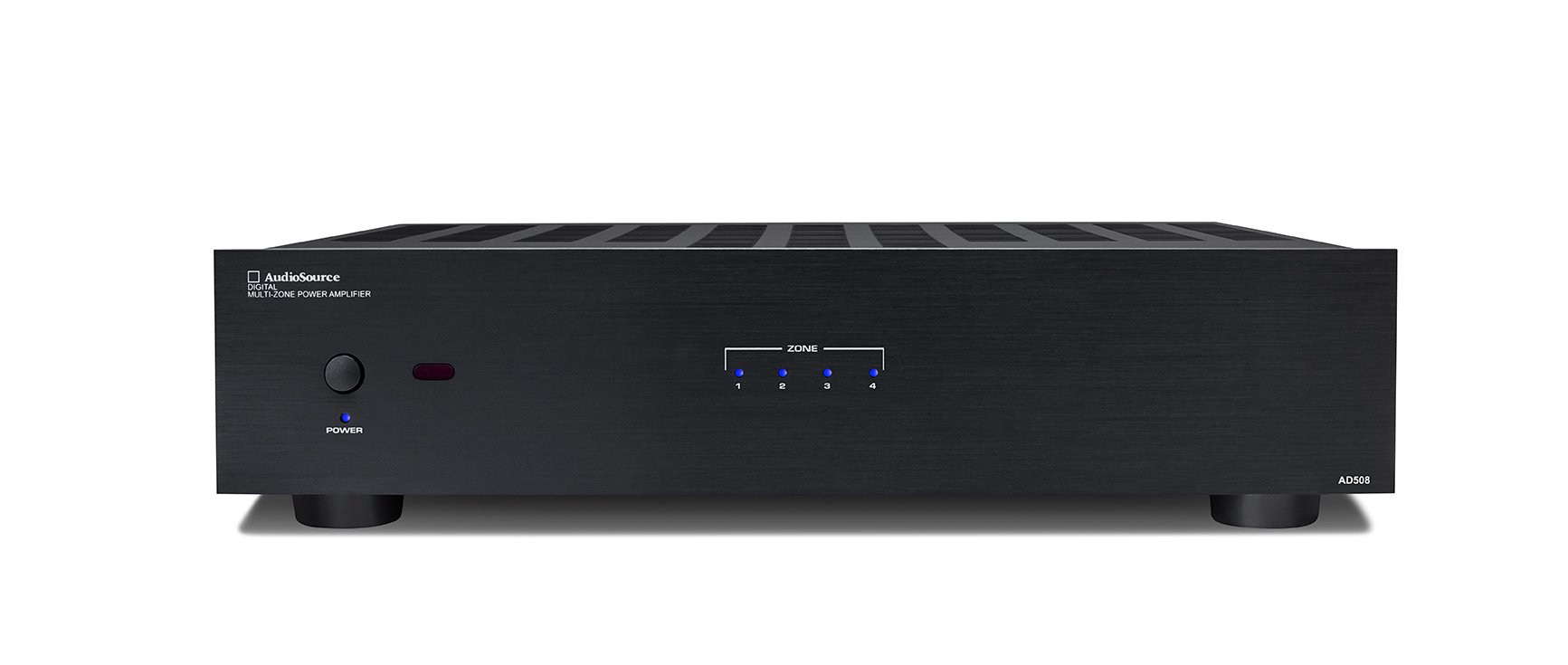

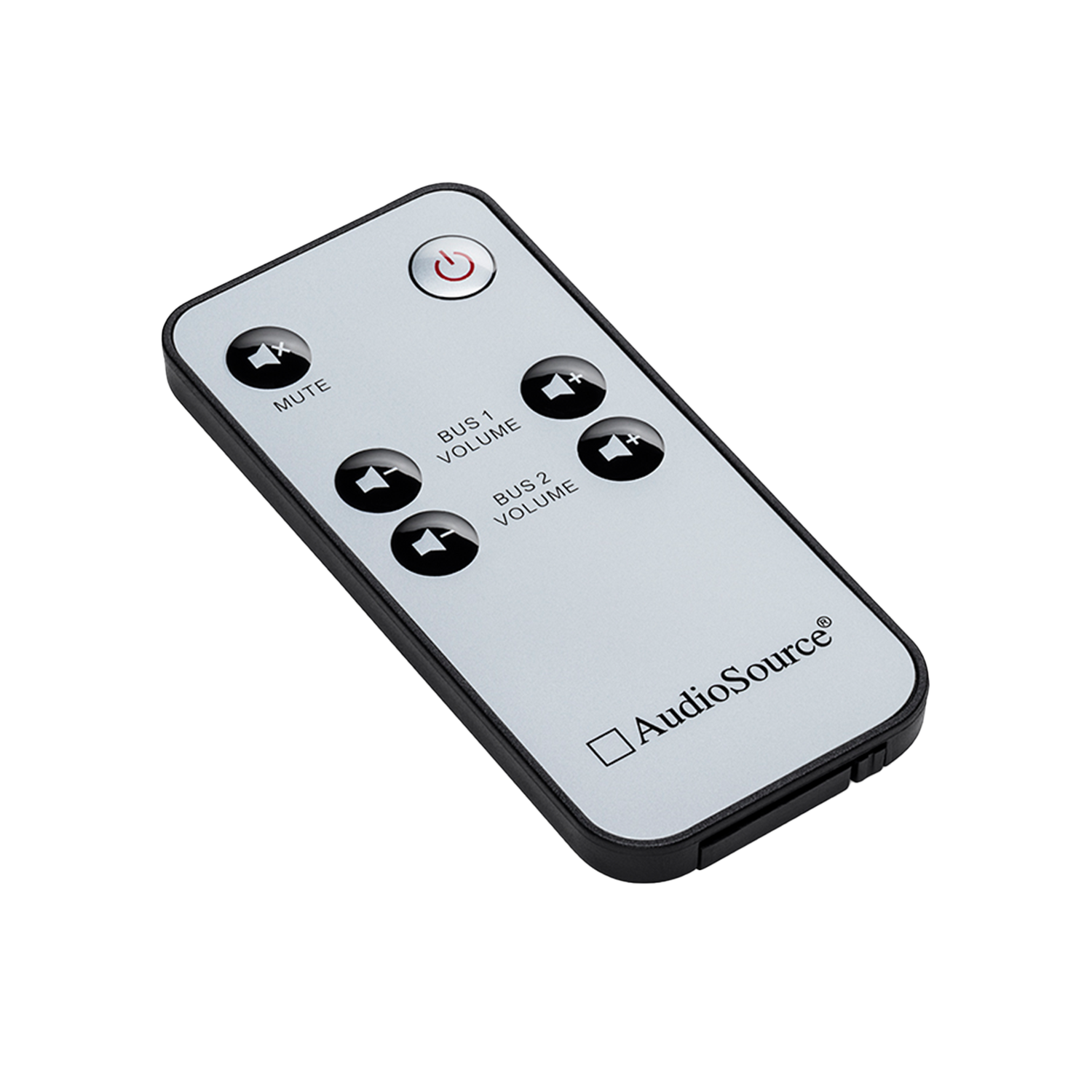

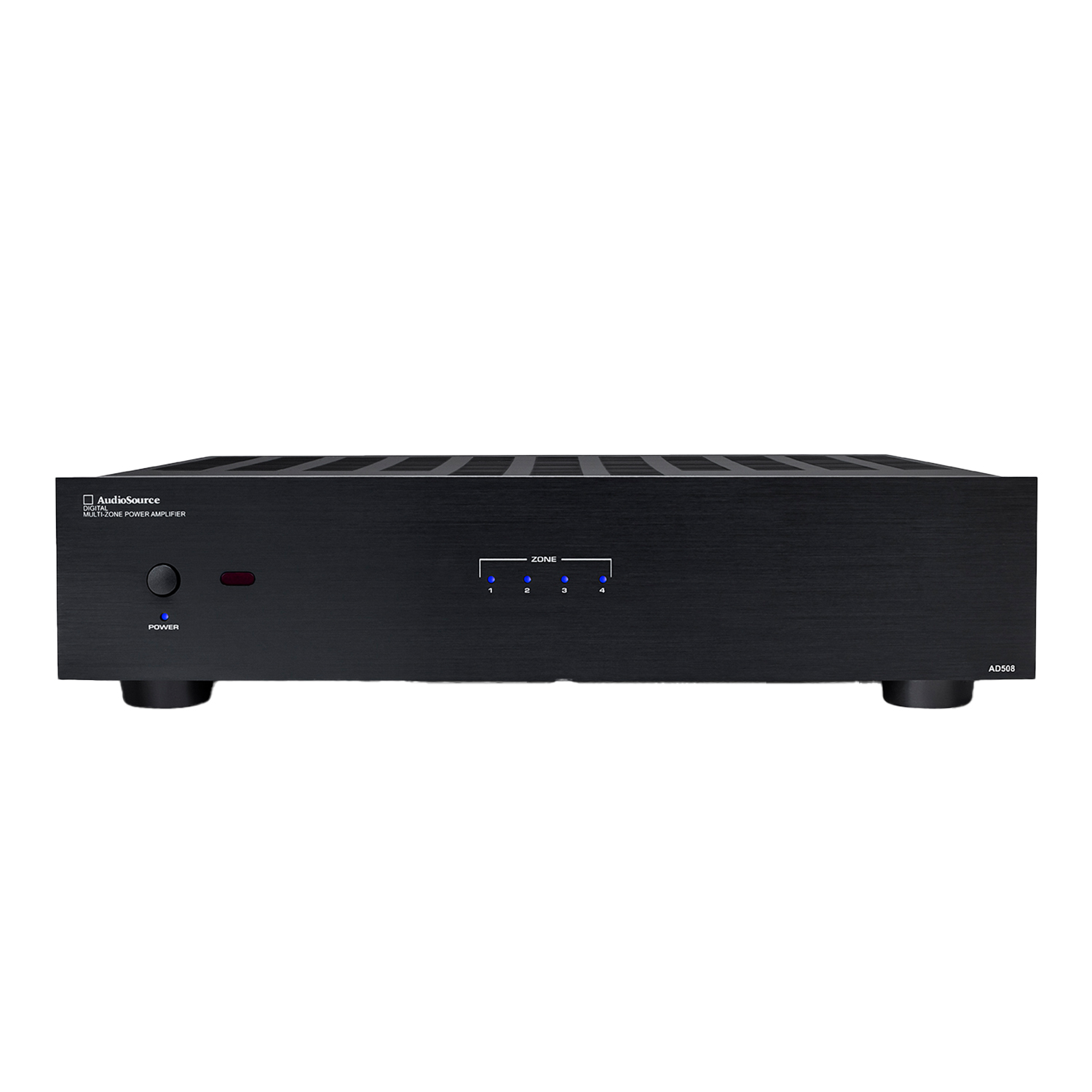

AudioSource AD508 system control is flexible with three power modes: Auto-On (signal sensing), 12V trigger, or always-on. Each zone includes status LEDs, individual level knobs, and bridge mode switches. A front-panel power switch with LED lets you know when the amp is active or in standby. The included IR remote allows convenient volume adjustments for Bus 1 and 2. The AD508 offers scalability, control, and reliability in a rack-mountable chassis.
Specifications
Amplifier Technology
Channels
Zones
Power Output (8 ohm stereo)
Power Output (4 ohm stereo)
Bridged Output (8 ohm mono)
Frequency Response
Signal to Noise Ratio
Channel Separation
Input Sensitivity
Input Impedance
Inputs
Speaker Terminals
Power Modes
Dimensions (HxWxD)
Net Weight
Rack Mountable
Power Consumption
Remote Control
Remote Control Functions
Warranty
UPC
What’s Included
